VES-400
2D 4K Video Endoscopy Camera System
특장점
- Choose from a Variety of Configurations including Multiple Endoscope and Laparoscope Options

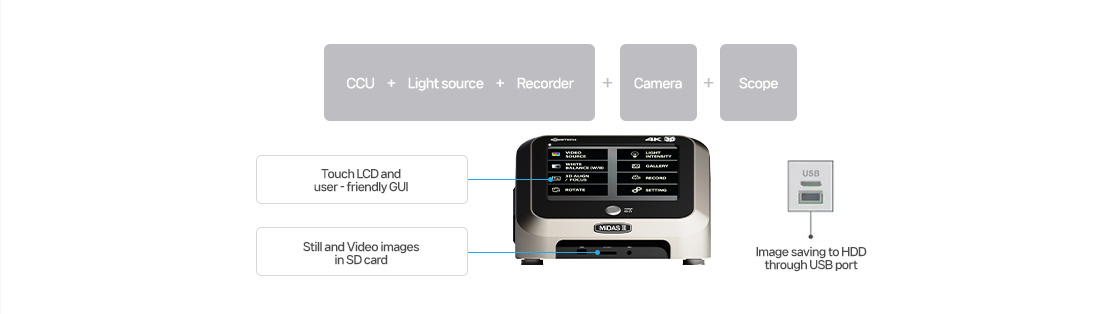

Main Unit
-
- All-in-One System (CCU + Light Source + Recording)
- Light Source : White LED, more than 100,000Iux
- Store Images into External Memmory USB(2.0) (FAT32 Format)
- User Friendly Touch LCD and Intuitive GUI
- Video Setting ㆍManaging up to 3 User
- Light Intensity Control to Affected Area (Levels 1 to 10)
- White Balance
- Video Recoder (MPEG-4 / H.264 File Extension(.AVI))
- Video Rotate (180º)

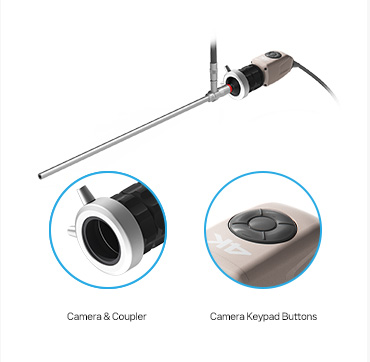

Camera
-
- Compatibility with All C-Mount 4K Zoom Coupler
- Focal Ranges from 14mm to 32mm
- Focus-Control to Fine Tune Your Image
- Crystal Clear 4K Resolution (3840 X 2160 / 60p)
- Compact and Small Camera Head for Easy Handling
- Lefe : Exposure Level(-)
- Right : Exposure Level(+)
- Down : Capture
- Programmable

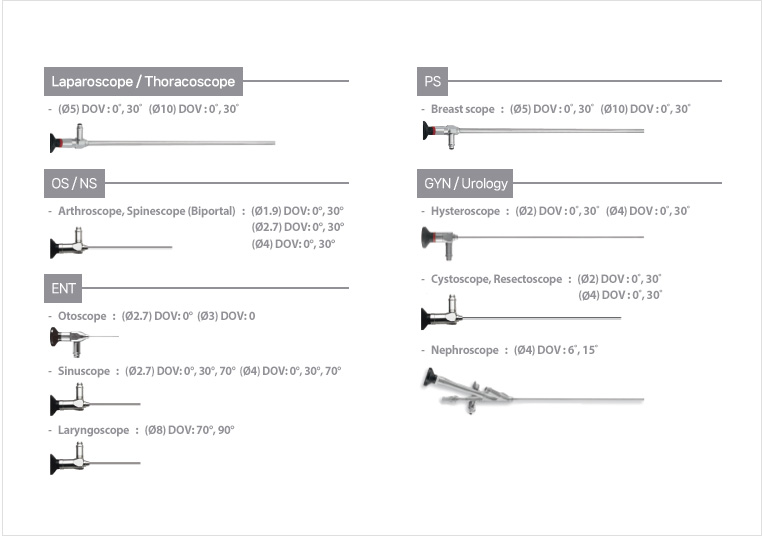

Scope
-
High quality Scopes for Major Applications
Rigid and Safe to Patients
Various Diameters and Length for Each Application
Product Specifications
Main Unit
| Performance Item | Performance |
|---|---|
| Light Source | more than 10x104 |
| Light Source Color Temperature | 5200˚K ± 5% |
| Cooling Fan | Forced Air-Cooling fan |
| Light Quantity Control | Step-by-Step Adjustment by GUI (Step 0 : OFF, Steps 1 to 10) |
| Storage Device | USB 2.0 Device Support (FAT32 format) |
| video Output | 4 x HDMI 2.0, 3840x2160 pixel 60p |
| Interface(TFT LCD) | Video Source, White Balance, Rotate, Light Interncity, Gallery, Record, Settin |
Camera
| Performance Item | Performance |
|---|---|
| Image Sensor | CMOS 3840(H)X2160(V) |
| Horizontal and vertical resolution | 1,500 TVL (Horizontal 1,500 line / verti 1,500 line) |
| Camera keypad buttons | Exposure Level Control |
| Still image capture |
