PRODUCT

VOMS-400(OPH)
3D Video Digital Operating Microscopy System
Features
  • Video Output : Ultra High Definition (3840 x 2160)
  • 3D Format : Side by side
  • Magnification :
    - Optical zoom : Two type turret lens (D.L 20mm(40x), D.L 40mm(20x) // 32” Monitor
    - Digital Zoom : 1.0x ~ 2.0x
    - Calculation value of zoom : Optical zoom x Digital zoom
  • Working Distance : 200mm
  • User Interface :
    - 10.4” TFT Touch LCD
    - Handheld remote-control keypad
    - Programmable foot pedal switch
  • XYZ Control : Motorized
  • Recording Device : MPEG-4/H.264 File Extension(AVI)
VOMS-400(OPH)
Redefining surgical visualization with innovative 3D 4K Technology

Characteristics

A New Trend In Global Surgery HUD (Head up display) 3D Video Surgical Microscope
Innovative Change of OP Room
Contributes surgeons to concentrate on surgery due to effective connection with other surgical devices and it also optimizes the effective workflow
during surgery.
True Head-Up Posture
Surgeon's head-up posture will be maintained throughout the whole surgery by watching the 4K 3D monitor, providing freedom from inevitable neck pain, back pain, eye strain, and headache
Easy Cooperation and Education
Everyone in the OR cooperates easily and observes every detail of the surgery as they watch same real time 3D images together with the surgeon.
Captured 3D surgical images can be used for training and education. In the past, Loupe or surgical microscopy was used.

Currently, 3D surgery using high-resolution 4K 3D video microscope is being developed to recognize the depth of the lesion through the monitor and
to further refine and precise surgery.

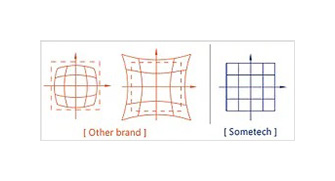

Minimized Distortion
Sometech`s patented lens technology minimizes chromatic aberration,
allowing surgeons to be free from eye strain, dizziness, and headache caused by distortion.
Fine focusing and Wide Field of View
Sometech’s patented image processing technology provides crystal
clear images for the immediate and the surrounding area.
Touch screen GUI
  • Programmable foot pedal switch
  • Video color control
  • Light intensity control
- 3D alignment
- 3D image rotation
- 3D Video recording
- Zooming control
Easy and precise movement
Ergonomic design allows easy and precise movement.
Surgeons can easily place the camera to focus on surgical area.
Adjustable optical zooming through motorized turret
Optimizing Operating Room (OR) space
Motorized Vertical, Horizontal and tilting extension arm
X,Y Axis Movement
C-curve arm for the straight view of surgeon
Ergonomic head up structure
Image shake reduction
X,Y Axis Movement
Multi-lens (20/40 mm) for anterior and posterior surgery
Motorizing movement controlled by foot pedal
Integrated wide angle viewer
Z axis movement
Caster lock and foot switch
One touch locking system
Programmable footswitch

Applications

Ophthalmology
  • Cataract
  • Lacrimal gland
  • Retina
  • Cornea
  • Glaucoma
  • Blepharoplasty

Product Specifications

Division Performance
Power input 100-240V AC 50/60Hz
Interface TFT Touch LCD, Foot Switch, Remote Keypad
Light intensity Levels 1 to 10(where, Level 0=OFF)
Light color temperature 4500K°± 5%
Video recording method MPEG-4 / H.264 File Extension (AVI)
Resolution 4K 3D / 3840 x 2160 / 60p
Video output Ultra-HD(3840x2160) HDMI x 4
3D format Side-by-side (SBS)
Magnification Optical Zoom 1.0x ~ 2.0x
2Turret [OPH] D.L 20mm(40x)-40mm(20x) / Based on 31" Monitor
Digital Zoom 1.0x ~ 2.0x
Working distance 2Turret Lens : W.D=200mm
Micro focus Motorized X, Y, Z control
