VOMS-202D
3D Video Digital Operating Microscopy System(Dental)
Features
- Depth perception through 3D stereoscopic image
- Allows more accurate and precise operation
- Natural color and depth perception
- Short learning curve
- No dizziness on long operations
- Utilization at conferences and other educational programs
Characteristics
Advantages (Visual)

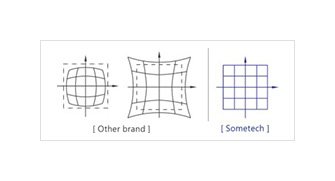

Distortion free
-
Sometech’s patented lens can minimize the chromatic aberration. Surgeons are relieved from
eye strain, dizziness, and headache caused by distortion.
Fine Focusing & Wide Field of View
- Sometech’s patented image processing technology provides crystal clear images not only for the immediate but also the surrounding area.
Easy and precise movement
- Ergonomic design allows easy and precise movement. Dentists can place the camera to focus on surgical area easily.
Convenient digital zoom by footswitch up to 1.5x
-
Digital zoom can be operated either by GUI in main unit or
footswitch for maximum convenience during dental surgery and
treatments.
Simple and easy 3D calibration
Advantages(Mechanical)
Touch screen & Control System
-
- VOMS-202D has a built-in GUI[TFT]
- Comfortable touch panel
- Manage video setting: up to 3 users
Integrated Recording System
-
- Media Storage : USB2.0 type/format type (FAT 32)
- Recording format : MPEG-4 /H.264 file Extension(AVI)
- The recording system allows users to record, save, and share Full-HD video surgeries for multiple purposes.

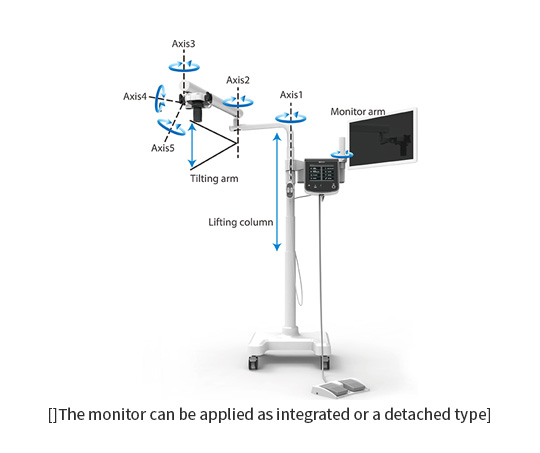

ARM & Height Control System
- ARM control
-
- Panning & Tilt control : Manual type
- Adjustable Height
-
- Height Control : Motorized type
- Users can adjust the equipment’s height according to their needs.
Applications
* Other than the above applications, Sometech’s RealMicro VOMS-202D is applicable for all other dental surgeries and treatments.
Product Specifications
| Main unit | Dimension |
Extension length: 1,584mm(W) x 550mm(D) x 1,662mm(H) Folded length : 750mm(W) x 550mm(D) x 1,300mm(H) |
|
|---|---|---|---|
| CCU | Power | 100-240VAC/50-60Hz | |
| 3D Muxing format | Side by side | ||
| OutPort | HDMIx 3EA : (GUI), (A),(B) | ||
| Light source | LED | White LED with UV cut filter | |
| Color temperature | 5,000 °K(+/-)10% | ||
| LifeTime | 60,000 hours | ||
| Recoder | Media Storage | USB2.0 type /format type (FAT 32) | |
| Recording format | MPEG-4 /H.264 file Extension(AVI) | ||
| GUI | Touch LCD | TFT Touch LCD 8” | |
| 3D Camera | Resolution | Full-HD(1920x1080/60P) 16 : 9 Ratio | |
| Digital zoom | 1.0x ~1.5x(Step 0.1x) | ||
| ARM control | Menual & Motorized |
Panning & Tilt control: Manual type Height Control : Motorized type |
|
| Lens |  |
||
|
3D Monitor (option) |
Resolution | Full-HD(1920x1080) | |
| Weight | 57 Kg *Without monitor* | ||
