VOMS-101D
3D Video Digital Operating Microscopy System (Dental)
Features
- Exceptionally clear 3D Full HD image quality
- New generation head-up posture observation
- Easily controllable camera arm in all directions
- True depth perception and wide field of view
- Distortion free images
Characteristics

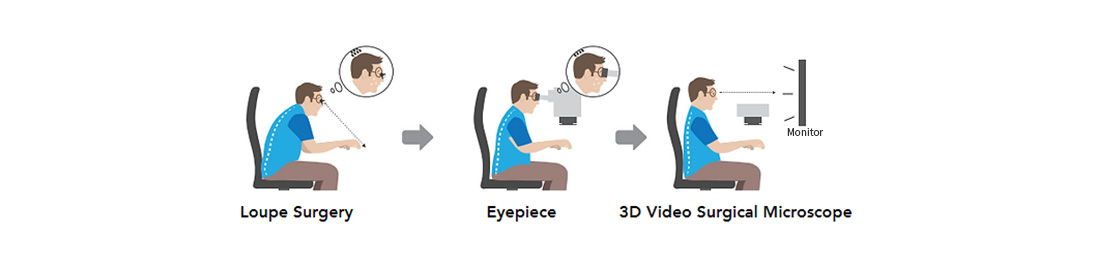

- A New Trend In Global Surgery HUD (Head up display) 3D Video Surgical Microscope
-
In the past, Loupe or surgical microscopy was used.
Currently, 3D surgery using high-resolution 3D video microscope is being developed to recognize the depth of the lesion through the monitor and
to further refine and precise surgery.

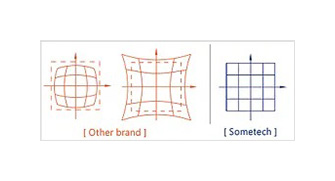

Distortion free
- Sometech`s patented lens technology minimizes chromatic aberration.
Unsurpassed depth of field
- Sometech’s patented image processing technology provides crystal clear images for the immediate and the surrounding area.
Head Up System
- Relief from neck and lumbar pain, eye strain and headache.
Touch screen GUI and recorder
- VOMS-101D has a built in GUI
Easy and precise movement
-
Ergonomic design allows easy and precise movement.
Surgeons can easily place the camera to focus on surgical area.
2.0X optical zooming by turret
- Adjustable optical zooming up to 2 times by simple twist of turret
2.0x Digital zooming (Footswitch)
-
It has optical and digital zooming system, optical zooming up to
2 times and digital zoom 2 times. Easy to control with the main
unit(GUI) and foot switch during surgery.
Applications
Product Specifications
| Main unit | Dimension | 280mm(W)x570mm(D)x180mm(H) |
|---|---|---|
| Power | 100-240VAC / 50-60Hz | |
| CCU | Video Output: FULL-HD(1920X1080), HDMI x4 | |
| Video source control: White Balance, Color, Gamma, sharpness, Exposure, Dynamic range | ||
| 3D Muxing format: Side by Side | ||
| Binocular digital zoom control: 1.0x~2.0x (Step. 0.1x) | ||
| Binocular disparity control | Light source | White LED(Cold Light) Light Fiber type built into the unit |
| Color temperature: 6500°K | ||
| Intensity: 0(Off)~10(Max), Brighter than Xenon 300W Light source | ||
| Life Time: About 60,000 hours (Light outlet position can be adjusted to provide the appropriate brightness in the subject) | ||
| Camera & Microscope Lens | 3D Camera | Full-HD(1920x1080) 16: 9 Ratio, HDMI Connector type |
| Digital Zoom: 1.0x ~ 2.0x | ||
| 3D Microscope lens |
 |
|
|
||
| Light Delivery System | Light cable | Fiber optic light guide cable (3.5m) |
| Light focusing lens |
|
|
| Light area |
|
|
| Monitor |
23" 3D Monitor(Standard)
Monitor(Option) Resolution: 1920 x 1080(Full HD)
26" FSN, 31" SONY, 32" FSN, 55" SONY
|
|
