Dr.Camscope

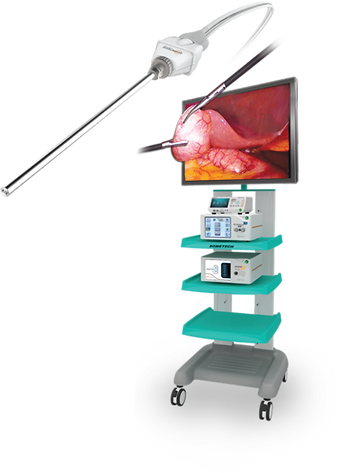

3D Laparoscopy system

Dr. camscope 3D laparoscope

Features

  • Crystal clear image (FULL-HD, 1920 X1080)(60P)

  • 3 Chip CCD adopted for natural color and deep depth perception

  • Short learning curve

  • High quality Scope (0°, 30°)

  • User friendly GUI

Characteristics

1920×1080P@60Hz High-Definition Image

Depth perception by 3D stereoscopic image


Convergence Control

With a basic working distance of 5cm, working distance is possible to be adjusted from 3cm as close range to 10cm as long range, allowing effective surgery for both close range and far

메인유닛 1.jpg

Allows more accurate and precise operation

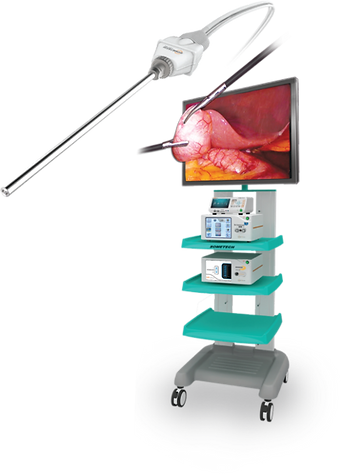

Main Unit

Binocular Disparity Control

Human eyes see objects with binocular disparity. In the same way, two cameras are used to display 3D image

Adjustment jig is provided to easily adjust the Binocular Disparity after scope replacement. Adjustment can be set with simple touch screen on the Binocular Disparity Control menu


White Balance Function

Automatically adjust the white balane of the camera image

Rotate Function

Depending on the operation environment, the image can be rotated 180 degrees

Interfaces 4 HDMI Output

Total 4 HMDI interfaces installed, 3 HDMI-out for 3D image and 1 HDMI-out for 2D image

Scope Unit (True-Eye)

Scope integrated with LED light

Light cables are very simple because scope's light source integrates with camera cables.

High resolution 1920 X 1080P@60Hz 3Chip CCD camera is used to express vivid and rich color and implement clear and accurate image

 High Resolution Rod Lens Design

By employing an independently developed Rod Lens, high-resolution 3D laparoscopy is implemented

SCOPE TYPE


Light Source (Solebeam)

LED Light Source

6,500。K color temperature to reduce eye fatigue

Light intensity of over 47,000LUX for easy visibility during surgery


General Surgery

Appendectomy

Gastrectomy

Cholecystectomy

Hepatectomy

Colectomy

Pancreatectomy

Splenectomy

Adrenalectomy

Rectal surgery

Bariatric surgery

Gastric bypass

Small bowel resection

Common bile resection

Common bile duct surgery

Obstetrics and gynecology

Hysterectomy

Myomectomy

Salpingo-Oophorectomy

Ovarian cystectomy

Hysterectomy

Pelvic lymph node dissection(PLND)



Urology

Nephrectomy (Total or partial )

Pelvic reconstruction

Renal cystectomy

Prostate tumor

Hepatectomy 어플.png
Hepatectomy
hystrectomy 어플.png
Hysterectomy
Cholecystectomy 어플.png
Cholecystectomy
Colorectal cancer 어플.png
Colo-rectal Cancer
Gastrectomy
Gastrectomy 어플.png
Pancreas 사진.png
Pancreatic Cancer
